Specifications

• General
  • Product name / series name: Cooking zone ceramic
  • SKU: NIT8660SUC
  • Internal article number: NIT8660SUC
  • EAN code: 4242005203222
  • Construction type: Built-in
  • Type of control: Electronic
  • Type of control: Direct Select 2.0, Front, Illuminated
  • Energy input: Electric
  • Number of radiant elements: 0
  • Number of halogen elements: 0
  • Power Cord Length: 37''
  • Number of electric warming zones: 0
  • Dimension of 1st heating element : 7''
  • Total number of cooktop burners: 5
  • Number of gas burners: 0
  • Number of electric elements: 0
  • Color of frame: Stainless Steel
  • Current (A): 40
  • Dimension of 3rd heating element : 7''
  • Volts (V): 208-240
  • Dimension of 5th heating element : 6''
  • Height of the packed product (mm): 172
  • Width of the packed product (mm): 608
  • Minimum height for installation (mm): 505
  • Maximum height for installation (mm): 508
  • Minimum width for installation (mm): 883
  • Product group: Hob
  • Overall appliance dimensions (HxWxD) : 5/16''+3 3/4'' x 37'' x 21 1/4''
  • Basic surface material: Ceramic
  • dishwasher safe pan support: No
  • Net weight (kg): 22.2
  • Gross weight (kg): 27.6
  • Brand: Bosch
  • Number of electric cooking zones: 5
  • Number of induction elements: 5
  • Location of control panel: Front
  • Type of frame: Profiles front+rear
  • Frequency (Hz): 60
  • Power cord length (cm): 96.0
  • Highlights: 17 power levels, 5 frying levels, Direct Select 2.0, fryingSensor Plus, Keep warm function, powerBoost
  • Automatic programmes: Yes
  • Location of the heating element: front left
  • Type of heating element: Induction heating
  • Dimension of the heating element: 180
  • Burners with booster: All
  • Location of 3rd heating element: back left
  • Type of 3rd heating element: Induction heating
  • Product packaging dimensions (HxWxD) : 7 1/16'' x 42 1/8'' x 26 5/8''
  • Dimension of 3rd heating element (mm): 180
  • Power of 3rd heating element (kW): 1.8
  • Location of 4th heating element: middle back
  • Dimension of 5th heating element (mm): 145
  • Power of 5th heating element (kW): 1.4
  • Location of 6th heating element: center right
  • Power of 1st heating element (kW in boost): [3.1]
  • Power of 3rd heating element (kW in boost): [3.1]
  • Power on indicator: No
  • Plate on indicator: 0
  • Type of regulation: Stepless energy regulated
  • Safety device: Childproof Lock, Panel Lock, pan recognition, Power Management Function
  • Optional accessories: HEZ390210, HEZ390220
  • UPC code: 825225961505
  • Gross weight : 61.000
  • Plug type: No Plug
  • Depth of the packed product (mm): 1076
  • Maximum width for installation (mm): 886
  • Depth for installation (mm): 95
  • Power of the heating element: 1.8
  • Type of lid: Without
  • Location of 2nd heating element: center left
  • Power of 5th heating element (kW in boost): [2.2]
  • Minimum distance from counter front : 2 1/4''
  • Minimum distance from rear wall : 2''
  • Required cutout size (HxWxD) : 3 3/4'' x 34 7/8'' x 20''
  • Location of 5th heating element: back right
  • Type of 5th heating element: Induction heating
  • Ignition system: No
  • Main on/off switch: Yes
  • Timer: Yes
  • Sealed Burners: No
  • Net weight : 49.000

Description

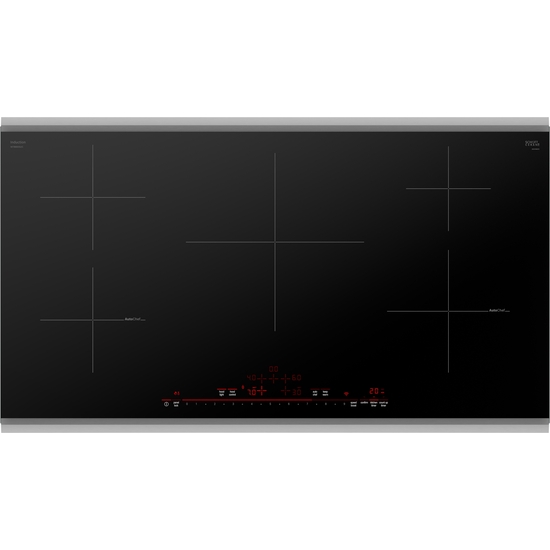

36-Inch Induction Smart Cooktop: Spacious cooking surface with five induction elements for versatile cooking.

Ceramic Surface: Sleek and easy-to-clean design that adds a modern touch to your kitchen.

12'' Dual-Ring Center Cooking Zone: Flexible cooking area that accommodates various cookware sizes for optimal heat distribution.

AutoChef®: Automatically adjusts temperature to ensure consistent and precise cooking results.

Hood Control: Conveniently control the kitchen hood directly from the cooktop for enhanced functionality.

Stainless Steel Frame: Durable and stylish frame that provides a premium, modern look to the cooktop design.

Features

• The 800 Series induction cooktop is sleek in design, and features AutoChef® technology which maintains precise cooking.
• Precise Temperature Control: Induction cooking offers a range of numbered heat levels for precise temperature and heat levels every time
• 17 Power Levels: offers a variety of cooking options with different heat levels for every need.
• SpeedBoost®: adds a boost of power to boil water and cook food more quickly
• PerfectFry: no more worries about scorching.
• Child Lock: locks the control panel to prevent unauthorized use.
