Specifications

• General
  • Product group: Hob
  • Brand: Bosch
  • Product name / series name: Cooking zone ceramic
  • SKU: NIT5460UC
  • Internal article number: NIT5460UC
  • EAN code: 4242005191321
  • Construction type: Built-in
  • Type of control: Electronic
  • Energy input: Electric
  • Number of electric elements: 0
  • Number of radiant elements: 0
  • Type of control: DirectSelect 1.0 (Timer), Front
  • Number of gas burners: 0
  • Power Cord Length: 37"
  • Number of induction elements: 3
  • Basic surface material: Ceramic
  • Type of frame: Frameless
  • Current (A): 30
  • Frequency (Hz): 60
  • Dimension of 5th heating element : 7''
  • Product packaging dimensions (HxWxD) : 6.45 x 25.59 x 28.62
  • Number of electric cooking zones: 3
  • Number of halogen elements: 0
  • dishwasher safe pan support: No
  • Automatic programmes: No
  • Location of the heating element: front left
  • Burners with booster: All
  • Location of 2nd heating element: center left
  • Type of 2nd heating element: Induction heating
  • Dimension of 2nd heating element (mm): 280
  • Location of 3rd heating element: back left
  • Location of 5th heating element: back right
  • Type of 5th heating element: Induction heating
  • Power of 5th heating element (kW in boost): [3.1]
  • Minimum distance from rear wall : 2"
  • Ignition system: No
  • Total number of cooktop burners: 3
  • Dimension of 2nd heating element : 11''
  • Volts (V): 208-240
  • Power cord length (cm): 96.0
  • Maximum width for installation (mm): 560
  • Depth for installation (mm): 95
  • Net weight (kg): 14.2
  • Gross weight (kg): 16.5
  • Highlights: 17 power levels, powerBoost
  • Minimum distance from counter front : 2 1/4"
  • Type of lid: Without
  • UPC code: 825225960652
  • Gross weight : 36.000
  • Minimum width for installation (mm): 560
  • Location of 4th heating element: middle back
  • Type of regulation: Stepless energy regulated
  • Number of electric warming zones: 0
  • Location of control panel: Front
  • Overall appliance dimensions (HxWxD) : 1/4''+3 3/4'' x 24" x 20 9/16"
  • Plug type: No Plug
  • Height of the packed product (mm): 164
  • Width of the packed product (mm): 650
  • Depth of the packed product (mm): 727
  • Minimum height for installation (mm): 490
  • Maximum height for installation (mm): 490
  • Power of 2nd heating element (kW): 2.6
  • Power of 5th heating element (kW): 1.8
  • Location of 6th heating element: center right
  • Power of 2nd heating element (kW in boost): 3.6
  • Required cutout size (HxWxD) : 3 3/4'' x 22" x 19 1/4"
  • Power on indicator: No
  • Plate on indicator: 0
  • Safety device: Childproof Lock, Panel Lock, pan recognition, Power Management Function
  • Timer: Yes
  • Net weight : 31.000
  • Dimension of 5th heating element (mm): 180
  • Main on/off switch: Yes
  • Optional accessories: HEZ390210, HEZ390220
  • Sealed Burners: No

Description

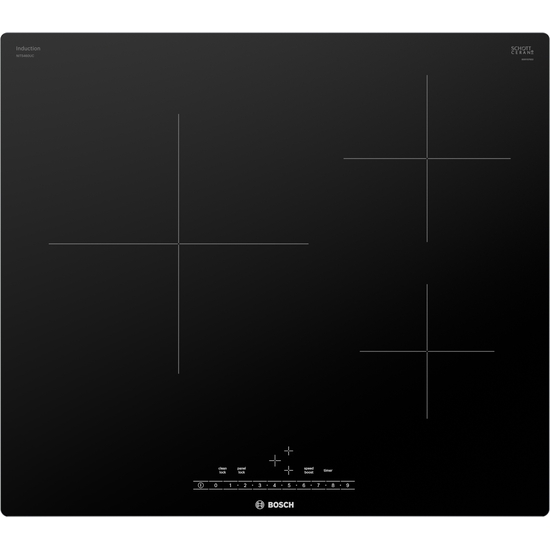

24-Inch Induction Cooktop: Compact design ideal for smaller kitchens without sacrificing cooking performance.

3 Elements: Provides versatility with three induction cooking zones for various dish preparations.

Ceramic Surface: Offers a smooth, modern design that is easy to clean and maintain.

11'' Cooking Zone: Provides a spacious area for larger cookware, allowing efficient cooking.

17 Power Levels: Offers precise control over heat for optimal cooking results.

SpeedBoost®: Quickly heats up the cooking zone, reducing cooking time.

PreciseSelect®: Allows easy and accurate selection of heat levels for each element.

PotSense: Automatically detects the presence of compatible cookware, activating the heating element.

ReStart: Restarts cooking at the previous settings after a power interruption for added convenience.

ChildLock: Ensures safety by preventing accidental activation or changes to settings.

Residual Heat Indicator: Alerts when the cooktop surface is still hot, preventing accidental burns.

Wipe Protection: Prevents accidental activation while cleaning, ensuring safety during maintenance.

ADA Compliant: Designed to meet accessibility requirements, making it easy to use for all.

Features

• The 500 Series induction cooktop is sleek in design and offers quick and even cooking results.
• 17 Power Levels: offers a variety of cooking options with different heat levels for every need.
• SpeedBoost®: adds a boost of power to boil water and cook food more quickly
• Child Lock: locks the control panel to prevent unauthorized use.
• Precise Temperature Control: Induction cooking offers a range of numbered heat levels for precise temperature and heat levels every time
• Ceramic Glass: this smooth surface makes cooking and cleaning especially easy.
