Specifications

• General
  • Product group: Hob
  • Product name / series name: gas hob w integrated controls
  • Internal article number: NGM8049UC
  • EAN code: 4242005455164
  • Construction type: Built-in
  • Type of control: Mechanical
  • Type of control: Front, Illuminated, sword knobs
  • Energy input: Gas
  • Number of electric cooking zones: 0
  • Number of electric elements: 0
  • Number of halogen elements: 0
  • Power Cord Length: 40''
  • Total number of cooktop burners: 5
  • Alternative gas type: Liquid gas 27,5 mbar (USA)
  • Basic surface material: Porcelain, Steel
  • Color of frame: Black
  • Current (A): 15
  • Frequency (Hz): 60
  • Power cord length (cm): 101.6
  • Plug type: 120V-3 prong
  • Product packaging dimensions (HxWxD) : 8 3/8'' x 37 1/8'' x 24 3/4''
  • dishwasher safe pan support: Yes
  • Width of the packed product (mm): 610
  • Minimum width for installation (mm): 735
  • Depth for installation (mm): 97
  • Highlights: Flame select, Wok burner
  • Automatic programmes: No
  • Brand: Bosch
  • Location of the heating element: front left
  • Type of heating element: Gas
  • Location of 3rd heating element: back left
  • Location of 4th heating element: middle back
  • LP Gas Connection Rating : 41700
  • Minimum distance from rear wall : 3''
  • Number of Double grates: 2
  • Number of Single grates: 1
  • Number of gas burners: 5
  • Number of electric warming zones: 0
  • Knob Material: Full metal
  • Power of 3rd heating element (kW): 1.45
  • Power on indicator: Yes
  • Type of regulation: Step energy regulated
  • SKU: NGM8049UC
  • Number of radiant elements: 0
  • Number of induction elements: 0
  • Gas type: Natural gas 15 mbar (USA)
  • Location of gas connection: Bottom, Rear, Right
  • Height of the packed product (mm): 210
  • Minimum height for installation (mm): 486
  • Maximum height for installation (mm): 486
  • Location of control panel: Front
  • Gas connection rating (W): 10
  • Maximum width for installation (mm): 735
  • Net weight (kg): 12.7
  • Power of the heating element: 1
  • Location of 2nd heating element: center left
  • Location of 5th heating element: back right
  • Type of 5th heating element: Gas
  • Power of 5th heating element (kW): 3
  • Location of 6th heating element: center right
  • Minimum distance from counter front : 1 7/8''
  • Total BTU load: 41700
  • Required cutout size (HxWxD) : 3 13/16'' x 28 15/16'' x 19 1/8''
  • Plate on indicator: 0
  • Type of lid: Without
  • Type of safety device for gas: Electromagnetic for each burner
  • Power of 1st burner : 3400
  • Depth of the packed product (mm): 860
  • Gross weight (kg): 21.0
  • Safety device: Thermo-electric
  • Included accessories: 1 x nozzle set for liquid gas, 1 x cast iron pan support
  • Optional accessories: HEZ298102, HEZ9GR58UC
  • Power of 5th burner : 3000
  • Power of 6th burner : 6000
  • Gross weight : 46.000
  • Overall appliance dimensions (HxWxD) : 3 13/16'' x 31'' x 21 1/4''
  • Volts (V): 120
  • Type of 3rd heating element: Gas
  • Ignition system: Yes
  • Power of 3rd burner : 6000
  • Timer: No
  • Main on/off switch: No
  • Sealed Burners: Yes
  • UPC code: 825225973058
  • Net weight : 28.000

Description

Burners: Equipped with five sealed burners, offering versatile cooking options and easy cleanup.

Cast Iron Continuous Grates: Durable and designed for smooth movement of cookware, ensuring even heat distribution.

Dual-Ring Power Burner: Provides high heat for fast cooking, perfect for searing and boiling.

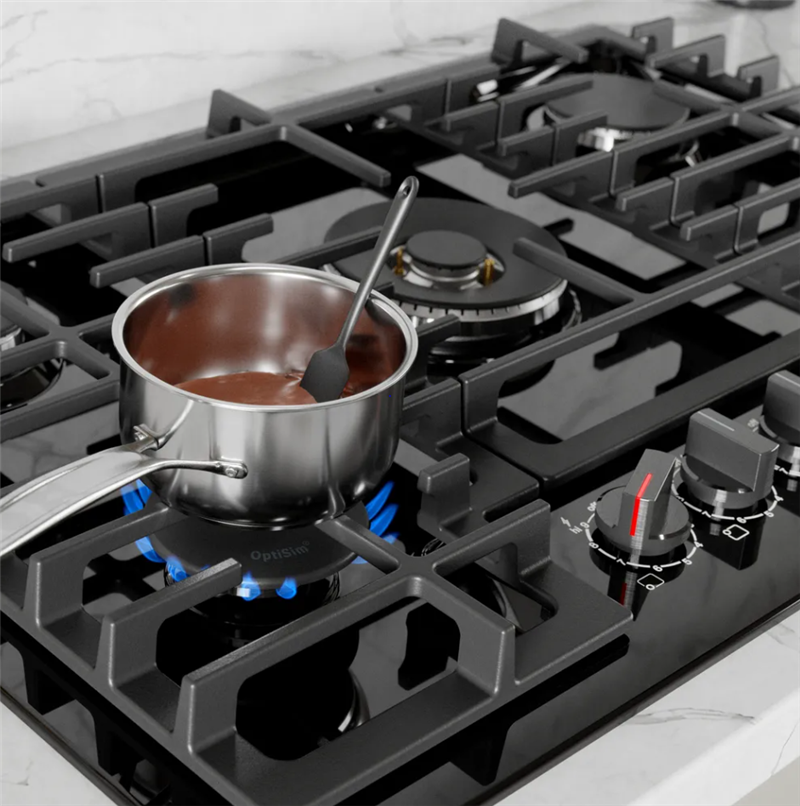

OptiSim® Burner: Allows for precise low-temperature simmering, ideal for delicate sauces and slow cooking.

FlameSelect®: Ensures precise and consistent flame control for more accurate cooking results.

Control Knob + Light Indicator: Features control knobs with light indicators for clear visibility of the burner status.

ADA Compliant: Designed to be accessible and user-friendly for individuals with varying abilities.

Features

• FlameSelect®: delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.
• LED Burner Indicator: displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicator
• OptiSim® Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
• Tilt & Stay legs for easy cleaning of cooktop - 1st in India
• Dishwasher-Safe Grates: conveniently place your grates in the dishwasher for easy clean-up.
