Specifications

• General
  • Product group: Hob
  • Brand: Bosch
  • Construction type: Built-in
  • Type of control: Electronic
  • Type of control: DirectSelect 1.0 (Timer), Front
  • Internal article number: NET8069SUC
  • Number of electric cooking zones: 4
  • Number of radiant elements: 4
  • Dimension of 1st heating element : 7"
  • Volts (V): 240/208
  • Plug type: No Plug
  • dishwasher safe pan support: No
  • Height of the packed product (mm): 210
  • SKU: NET8069SUC
  • EAN code: 4242005178841
  • Energy input: Electric
  • Total number of cooktop burners: 4
  • Product name / series name: Cooking zone ceramic
  • Number of gas burners: 0
  • Number of electric elements: 0
  • Number of halogen elements: 0
  • Number of induction elements: 0
  • Number of electric warming zones: 0
  • Location of control panel: Front
  • Overall appliance dimensions (HxWxD) : 1/4"+4 " x 31" x 21 1/4"
  • Basic surface material: Ceramic
  • Type of frame: Profiles front+rear
  • Color of frame: Stainless Steel
  • Current (A): 40/30
  • Dimension of 3rd heating element : 7"
  • Product packaging dimensions (HxWxD) : 7 7/8" x 37 3/8" x 24"
  • Minimum height for installation (mm): 505
  • Maximum height for installation (mm): 508
  • Maximum width for installation (mm): 734
  • Frequency (Hz): 60
  • Dimension of 5th heating element : 6" ; 9"
  • Power cord length (cm): 96.0
  • Highlights: 17 power levels
  • Type of heating element: Radiant heating
  • Dimension of the heating element: 180
  • Power of the heating element: 1.8
  • Burners with booster: Rear right
  • Location of 2nd heating element: center left
  • Location of 3rd heating element: back left
  • Type of 3rd heating element: Radiant heating
  • Dimension of 3rd heating element (mm): 180
  • Power of 3rd heating element (kW): 1.8
  • Location of 4th heating element: middle back
  • Type of 5th heating element: Radiant heating
  • Minimum distance from rear wall : 2
  • Power on indicator: Yes
  • Plate on indicator: 1
  • Ignition system: No
  • Width of the packed product (mm): 615
  • Depth of the packed product (mm): 950
  • Gross weight (kg): 15.4
  • Automatic programmes: No
  • Location of the heating element: front left
  • UPC code: 825225960171
  • Gross weight : 34.000
  • Net weight : 26.000
  • Minimum width for installation (mm): 731
  • Depth for installation (mm): 100
  • Net weight (kg): 11.7
  • Power of 5th heating element (kW): 1.4 ; 3.6
  • Location of 6th heating element: center right
  • Minimum distance from counter front : 2 1/4
  • Type of regulation: Stepless energy regulated
  • Type of lid: Without
  • Location of 5th heating element: back right
  • Dimension of 5th heating element (mm): 140 ; 230
  • Required cutout size (HxWxD) : 4 " x 28 3/4 " x 19 7/8 "
  • Timer: Yes
  • Sealed Burners: No
  • Main on/off switch: Yes
  • Safety device: Auto Safety Shutoff, Childproof Lock, Panel Lock
  • Optional accessories: HEZ390210, HEZ390220

Description

Size & Elements: 30-inch cooktop with four elements, offering versatile cooking options.

Bridge Element: Includes a bridge element that combines two burners, perfect for larger cookware.

Dual Elements: Features dual elements for flexibility and even cooking across different pot sizes.

SpeedBoost®: Equipped with SpeedBoost® technology for faster heating and reduced cooking time.

Ceramic Glass Surface: Sleek and easy-to-clean ceramic glass surface for a modern look.

Automatic Shut-Off: Safety feature that automatically shuts off the cooktop after a set time.

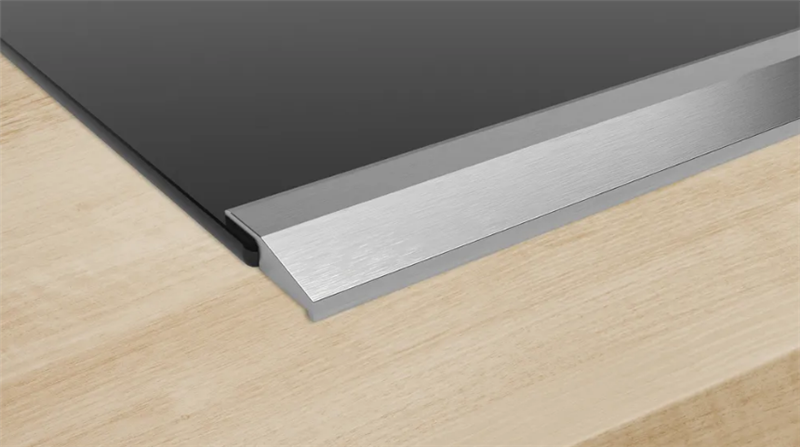

Frameless Design: The frameless design enhances the cooktop’s appearance and allows for a seamless installation.

Features

• Sleek in Design, and Features SpeedBoost® Which Adds Even More Power to the Cooking Process
• Precise Temperature Control: Induction cooking offers a range of numbered heat levels for precise temperature and heat levels every time
• 17 Power Levels: offers a variety of cooking options with different heat levels for every need.
• SpeedBoost®: adds a boost of power to boil water and cook food more quickly
• Count-Up Timer: allows you to accurately time each step of your recipe.
• Bridge Element: combines two cooking areas to accommodate larger cookware.
