Specifications

• General
  • Product group: Cooker
  • Brand: Bosch
  • Included accessories: 1 x oven racks /upper, 1 x nozzle set for liquid gas, 1 x cast iron pan support, 1 x telescopic rack, 1 x temperature probe /upper

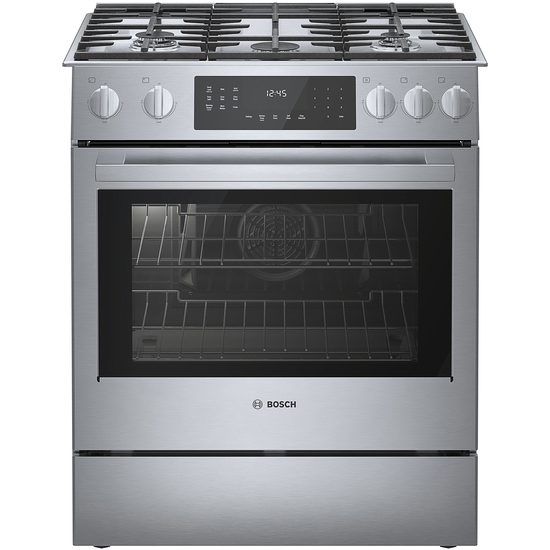

  • Product name / series name: Freestanding gas cooker
  • Optional accessories - primary cavity: HEZ298102, HEZGR301, HEZTR301, HGZBS301, HGZIT301
  • SKU: HGIP056UC
  • Type of control: Electronic
  • Total number of cooktop burners: 5
  • Number of gas burners: 5
  • Number of electric cooking zones: 0
  • Number of radiant elements: 0
  • Number of halogen elements: 0
  • Number of induction elements: 0
  • Which kind of hobs can be controlled?: Gas
  • Energy input: Gas
  • Variable cooker height : 1 1/2"
  • Volts (V): 120
  • Power cord length (cm): 198.1
  • Depth with open door 90 degree (mm): 1228
  • Product packaging dimensions (HxWxD) : 43 3/4'' x 34'' x 31 1/2''
  • Height of the packed product (mm): 1105
  • Overall appliance dimensions (HxWxD) : 36 1/2" x 31 1/2'' x 29 3/16"
  • Width of the packed product (mm): 864
  • Depth of the packed product (mm): 806
  • Display: red, white
  • Adjustable feet: Yes - all
  • Maximum adjustability feet (mm): 25
  • Net weight (kg): 118.9
  • Gross weight (kg): 128.0
  • Cooking mode: Broil, Convection Bake, Convection Broil, Convection Roast, Gas bottom heating, Pizza, Proof, Selfcleaning pyrolitic, Warming, Warming Drawer
  • Number of cavities (2010/30/EC): 1
  • Location of the heating element: front left
  • Type of heating element: Gas
  • Location of 2nd heating element: center left
  • Knob Material: Full metal
  • Location of 3rd heating element: back left
  • Type of 3rd heating element: Gas
  • Location of 4th heating element: middle back
  • Location of 5th heating element: back right
  • Type of 5th heating element: Gas
  • Location of 6th heating element: center right
  • Total BTU load: 73000
  • Required cutout size (HxWxD) : 30'' width slide-in
  • Number of Double grates: 2
  • Power of 1st burner : 10000
  • Plate on indicator: 0
  • Residual heat indicator: Without
  • Power on indicator: No
  • Power of 3rd burner : 5000
  • Type of lid: Without
  • Power of 5th burner : 5000
  • Ignition system: Yes
  • Power of 6th burner : 15000
  • Control panel information: Clear Text display, Digital display, Printing on panel front, Printing on panel front
  • Motorized turn spit: No
  • Sealed Burners: Yes
  • Probe: No
  • Included accessories: 1 x oven racks /upper, 1 x nozzle set for liquid gas, 1 x cast iron pan support, 1 x telescopic rack, 1 x temperature probe /upper
  • Optional accessories: HEZ298102, HEZGR301, HEZTR301, HGZBS301, HGZIT301
  • Interior light: Yes
  • Number of interior lights: 2
  • Grids: 0
  • Time control: Electronic
  • UPC code: 825225959731
  • AHAM usable cavity size: 2
  • Gross weight : 282.000
  • Net weight : 262.000
  • Internal article number: HGIP056UC
  • EAN code: 4242005171392
  • Material Color - door: Stainless Steel
  • Construction type: Freestanding
  • Type of control: Front, sword knobs
  • Product color: Stainless steel
  • Number of electric elements: 0
  • Gas type: Natural gas 15 mbar (USA)
  • Alternative gas type: Liquid gas 27,5 mbar (USA)
  • Gas connection rating (W): 21390
  • Current (A): 15
  • Frequency (Hz): 60
  • Plug type: 120V-3 prong
  • Door Material - primary cavity: Stainless steel
  • Main on/off switch: No
  • Safety device: Door Lock Electronical
  • Timer: Yes
  • Settings backup: Yes
  • Automatic programmes: No
  • Shelves type: Ribs
  • Trays: 0

Description

Size: 30-inch slide-in design for a modern and seamless kitchen appearance.

Burners: Equipped with five sealed burners for versatile cooking options.

Oven Capacity: 4.8 cu. ft. of space, perfect for baking, roasting, and more.

Dual-Stacked Center Burner: Provides high heat for searing and precision simmering.

QuietClose®: Gently and quietly closes the oven door for a premium feel.

Warming Drawer: Keeps food at the ideal temperature until ready to serve.

Touch Control: Easy-to-use touch panel for precise temperature adjustments and settings.

Features

• The Full-depth Gas Slide-in Range Fits into Any Freestanding Range Cutout, and Features a Powerful Dual-stacked Burner.
• Slide-In Range: can replace a freestanding range cutout and slides back against the wall for a sleek built-in look.
• 20,000 BTU Center Burner: powerful burner delivers quickly for searing, boiling and more
• Continuous Cast Iron Grates: allows you to easily slide heavy pots and pans from burner to burner.
• Generous Capacity: fit large dishes with 4.8 cubic feet of space.
• 2 Hour Self Cleaning: quickly clean your oven in only two hours.
