Specifications

• General
  • EAN code: 4242005193516
  • Bake Element Wattages primary cavity : 1700
  • Volts (V): 240/208
  • Depth of the packed product (mm): 835
  • Maximum adjustability feet (mm): 32
  • Net weight (kg): 91.8
  • Gross weight (kg): 102.7
  • Cooking mode: 3rd Element Convection, Bake, Bottom heat, Convection Bake, Convection Broil, Convection Roast, Pizza, Proof, Special baking setting, Top heat
  • Number of cavities (2010/30/EC): 1
  • Location of the heating element: front left
  • Type of heating element: Gas
  • Location of 2nd heating element: center left
  • Brand: Bosch
  • Product name / series name: Freestand combination cooker
  • Optional accessories - primary cavity: HEZ9GW23UC, HEZ8LLUC, HEZ8TK30UC, HEZ8YZ04UC, HEZ8YZ30UC, HEZ8ZZ30UC, HEZ9GR41UC
  • SKU: HDS8045U
  • Internal article number: HDS8045U
  • Construction type: Freestanding
  • Type of control: Electronic
  • Type of control: Front, Rotary knob, sword knobs
  • Number of gas burners: 5
  • Number of electric cooking zones: 0
  • Number of halogen elements: 0
  • Material Color - door: Black
  • Total number of cooktop burners: 5
  • Number of electric elements: 0
  • Number of radiant elements: 0
  • Which kind of hobs can be controlled?: Mixed
  • Variable cooker height : 1 1/4"
  • Gas type: Natural gas 15 mbar (USA)
  • Current (A): 20
  • Frequency (Hz): 60
  • Plug type: No Plug
  • Depth with open door 90 degree (mm): 1161
  • Height of the packed product (mm): 865
  • Width of the packed product (mm): 710
  • Product group: Cooker
  • Number of induction elements: 0
  • Convection Element Wattages primary cavity : 2700
  • Gas connection rating (W): 14100
  • Power cord length (cm): 140.0
  • Knob Material: Full metal
  • Type of 3rd heating element: Gas
  • Location of 4th heating element: middle back
  • Type of 5th heating element: Gas
  • Location of 6th heating element: center right
  • Required cutout size (HxWxD) : 30" width slide-in
  • Number of Double grates: 2
  • Power of 1st burner : 5000
  • Plate on indicator: 0
  • Residual heat indicator: Without
  • Type of safety device for gas: Electromagnetic for each burner
  • Main on/off switch: No
  • Safety device: Safety valve
  • Door Material - primary cavity: Stainless steel
  • Product packaging dimensions (HxWxD) : 34 1/16" x 32 7/8" x 28"
  • Overall appliance dimensions (HxWxD) : 36" x 29 15/16" x 24 15/16"
  • Power on indicator: No
  • Power of 3rd burner : 10000
  • UPC code: 825225960799
  • Gross weight : 226.000
  • Net weight : 202.000
  • Adjustable feet: Yes - all
  • Ignition system: Yes
  • Power of 6th burner : 10000
  • Control panel information: LCD, On control knob, Printing on panel front
  • Power of 6th burner : 18000
  • Shelves type: Shelf support rails
  • Power of the heating element: 1.5
  • Type of lid: Without
  • Power of 5th burner : 5000
  • Timer: No
  • Motorized turn spit: No
  • Sealed Burners: Yes
  • Probe: No
  • Optional accessories: HEZ9GW23UC, HEZ8LLUC, HEZ8TK30UC, HEZ8YZ04UC, HEZ8YZ30UC, HEZ8ZZ30UC, HEZ9GR41UC
  • Interior light: Yes
  • Number of interior lights: 1
  • Integrated Cleaning system: Catalytic partial
  • Power of 3rd heating element (kW): 2.9
  • Location of 3rd heating element: back left
  • Power of 5th heating element (kW): 1.5
  • Location of 5th heating element: back right
  • Total BTU load: 48000
  • Settings backup: No
  • Automatic programmes: No

Description

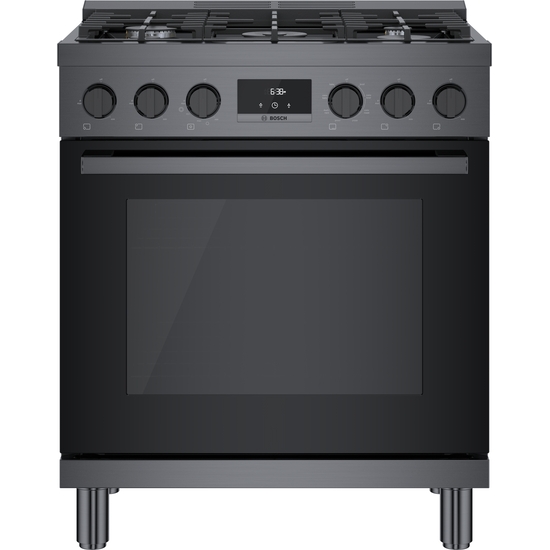

30-inch freestanding dual fuel range combining the precision of a gas cooktop with the even heat of an electric oven

Five sealed burners, including a double ring burner for versatile and efficient cooking

3.9 cu. ft. oven capacity with European Convection for even and consistent baking and roasting

Heavy-duty metal knobs for added durability and precise control

Sleek, modern design that complements any kitchen décor

Perfect for home chefs seeking high-performance cooking capabilities across both the stovetop and oven

Features

• The Bosch industrial-style range combines a commercial look with powerful features that are designed to perform.
• Industrial-Chic Design: features heavy duty metal knobs and a bold design, along with high-performing function.
• High Efficiency Gas Burners: requires less gas BTUs to achieve a faster boiling and cooking time
• Continuous Cast Iron Grates: allows you to easily slide heavy pots and pans from burner to burner.
• Dishwasher-safe Grates: can be removed and safely cleaned directly in the dishwasher.
• Convection Multi-Rack: bake evenly on multiple racks with this powerful third element that allows for thorough heat distribution.
