Specifications

• Type: Hood
• Glass Canopy: No
• Style: Chimney Style
• Venting Type: Ducted
• Blower Type: Blower not Included
• Mounting Type: Wall Mount
• Vent Location: Top or Rear
• Approved for Outdoor Use: No
• Lighting Type: LED
• Number of Fan Speeds: 3
• Pro-Style: Yes
• Filter Type: Baffle
• Light: Yes

Technical Details

• Energy Star: No
• Amps: 10
• Electrical: 3-prong, Non-GFCI outlet - 120Volt

Dimensions

• Width: 59 7/8" (+/- 1/16")
• Depth: 24"
• Height: 18"

Warranty

• Parts and Labor: 2 Years

Description

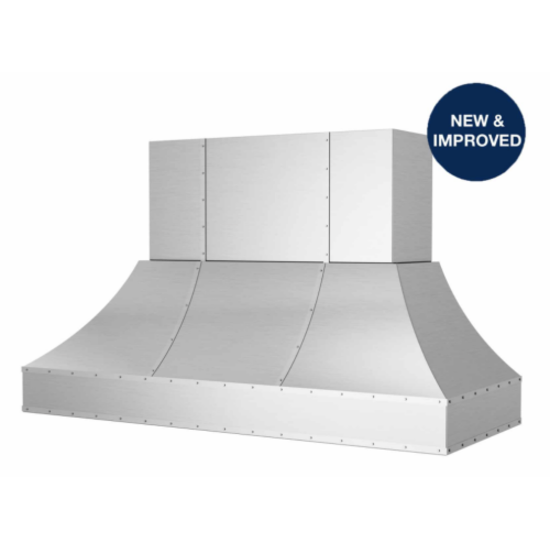

• 60 Inch Wall Mount Range Hood: Offers a sleek and professional appearance for your kitchen with a brushed stainless steel finish.
• 3-Speed Fan with Boost: Features three blower speeds operated by a push-button control system, with a fourth Boost speed to clear high smoke quickly for seven minutes before returning to the third speed.
• Multiple Blower Options: Compatible with internal, in-line, or remote blowers, with options ranging from 600 to 1,400 CFM to suit your ventilation needs.
• Dimmable LED Lighting: Energy-efficient LED lights designed to illuminate your cooking surface for improved visibility, with adjustable light intensity and a memory function.
• Stainless Steel Baffle Filters: Durable and dishwasher-safe, these filters capture over 90% of cooking grease while improving airflow.
• Multi-Stage Grease Capture System: Enhances grease removal with a combination of high-performance baffle filters and an inner shield to capture grease at multiple stages.
• Whisper-Quiet Operation: Designed for a quiet, peaceful kitchen environment without disturbing conversation.
• Customizable Design: Fully customizable with options for color, metal finishes, strapping, and rivets to match your kitchen style.
• Professional-Grade Smoke Removal: Effectively removes smoke and odors from your kitchen, ensuring a fresh environment.
• Push-Button Controls: Easy-to-use controls for managing fan speeds and lighting with a simple push.
• Blower Compatibility: Supports in-line, in-hood, and remote blower options for flexible installation and ventilation solutions.
• Mounting Type: Wall-mount design for easy installation and space-saving.

Features

• • Three-Speed Fan: Three unique blower speeds are operated by a discreet push-button control panel system.
  • Boost Feature: A fourth Boost speed can be selected for high smoke cooking, running for 7 minutes to efficiently clear the air before automatically returning to the third speed.
  • Multi-Stage Grease Capture System: This innovative system starts with durable, dishwasher-safe stainless steel baffle filters that improve airflow and capture over 90% of cooking grease. The second stage is an inner shield that works to distribute airflow evenly across the entire cooking surface while capturing any grease that may come through.
  • Easy Removable Grease Tray: Collects any final residual grease.
  • Stunning LED Lighting: Energy-efficient LED lights highlight your cooking surface for improved visibility. The light intensity is adjustable, and a memory feature retains the last set position when turned back on.
  • Quiet Performance with Multiple Blower Options: BlueStar® ventilation hoods provide optimal exhaust with a whisper-quiet operation that does not interfere with conversation while entertaining. Choose from either high-performance internal, in-line, or remote blowers.
  • Customization:
    • Color Options: Choose from over 1,000 colors in gloss, matte, and textured finishes to create the perfect focal point in your kitchen design. Send a sample of your favorite color for a custom look.
    • Blower Options: Internal blowers are available in 600 and 1200 CFM, In-line blowers in 800 and 1200 CFM, and Remote blowers in 1000 and 1400 CFM.
    • Metals & Strapping: Change your hood material from stainless steel to 14 different custom metals, including brass and copper. Add custom strapping and rivets to complement other finishes in your kitchen.
  • Additional Features:
    • Professional-grade smoke removal
    • 3-speed fan with a boost feature
    • Innovative multi-stage grease capture system
    • Enhanced visibility with dimmable LED lighting
    • Quiet operation
    • Includes brushed stainless steel strapping & rivets
    • Stainless baffle filters are dishwasher-safe
    • Easy-to-use push-button controls
    • Included duct cover heights: 10", 16", 22", 28", 34", 40", 46"
    • Accommodates top or rear discharge
    • In-line, in-hood, and remote blower compatible
