Specifications

• Type: Hood
• Glass Canopy: No
• Style: Chimney Style
• Venting Type: Ducted
• Blower Type: Blower not included
• Mounting Type: Wall Mount
• Vent Location: Top or Rear
• Approved for Outdoor Use: No
• Lighting Type: LED
• Number of Fan Speeds: 3
• Pro-Style: Yes
• Filter Type: Baffle
• Light: Yes

Technical Details

• Energy Star: No
• Amps: 10
• Electrical: 3-prong, Non-GFCI outlet - 120Volt

Dimensions

• Width: 47 7/8" (+/- 1/16")
• Depth: 24"
• Height: 18"

Warranty

• Parts and Labor: 2 Years

Description

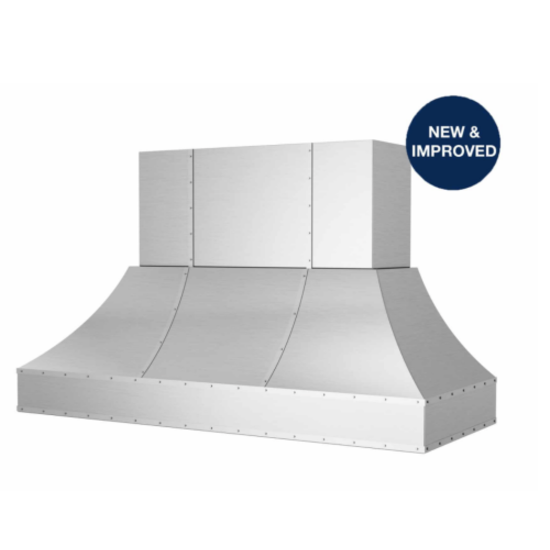

• 48 Inch Wall Mount Range Hood with 3-Speed + Boost for enhanced performance
• Multiple Blower Options: Internal, in-line, or remote blowers available to suit your ventilation needs
• Push-Button Controls for easy operation
• Dimmable LED Lighting for adjustable brightness, with a memory feature to retain the last set position
• Stainless Steel Baffle Filters that are dishwasher safe, durable, and improve airflow while capturing grease
• Multi-Stage Grease Capture System: Includes a durable filter and an inner shield for optimal grease removal and airflow distribution
• Whisper-Quiet Operation with efficient performance, even during high smoke cooking
• Customization Options: Choose from over 1,000 colors, including gloss, matte, and textured finishes
• Blower Options: Available in 600 and 1200 CFM internal blowers, 800 and 1200 CFM in-line blowers, and 1000 and 1400 CFM remote blowers
• Metals & Strapping: Option to customize with 14 different metals such as brass and copper, along with custom strapping and rivets
• Easy Installation: Accommodates top or rear discharge and offers multiple duct cover height options (10'', 16'', 22'', 28'', 34'', 40'', 46'')
• Brushed Stainless Steel finish for a sleek and modern look

Features

• • Three-Speed Fan: Three unique blower speeds operated by a discreet push-button control panel system.
  • Boost Feature: A fourth Boost speed can be selected for high smoke cooking. It will run for 7 minutes to efficiently clear the air before automatically returning to the third speed.
  • Multi-Stage Grease Capture System: This innovative system begins with durable, dishwasher-safe, stainless steel baffle filters that improve airflow and capture over 90% of cooking grease. The second stage features an inner shield that distributes airflow evenly while capturing any remaining grease.
  • Easy Removable Grease Tray: Collects any final residual grease for easy cleanup.
  • Stunning LED Lighting: Energy-efficient LED lights provide improved visibility by perfectly highlighting your cooking surface. The light intensity is adjustable, and a memory feature ensures the lighting stays in the last set position when turned back on.
  • Quiet Performance with Multiple Blower Options: BlueStar® ventilation hoods offer optimal exhaust with whisper-quiet operation that does not interfere with conversation. Choose from high-performance internal, in-line, or remote blowers.
  • Customization:
    • Color Options: Choose from 1,000+ colors in gloss, matte, and textured finishes to create the perfect focal point in your kitchen.
    • Blower Options: Internal blowers available in 600 and 1200 CFM, in-line blowers available in 800 and 1200 CFM, and remote blowers available in 1000 and 1400 CFM.
    • Metals & Strapping: Customize your hood material with 14 different metal options, including brass and copper, and enhance the design with custom strapping and rivets.

  Additional Features

  • Professional-grade smoke removal
  • 3-speed fan with a boost feature
  • Innovative multi-stage grease capture system
  • Enhanced visibility with dimmable LED lighting
  • Quiet operation
  • Includes brushed stainless steel strapping & rivets
  • Stainless baffle filters for dishwasher-safe cleaning
  • Easy-to-use push-button controls
  • Duct cover heights: 10", 16", 22", 28", 34", 40", 46"
  • Accommodates top or rear discharge
  • In-line, in-hood, and remote blower compatible
