Specifications

• Type: Hood
• Glass Canopy: No
• Style: Canopy Pro Style
• Venting Type: Ducted
• Blower Type: Blower not Included
• Mounting Type: Wall Mount
• Vent Location: Top or Rear
• Approved for Outdoor Use: No
• Lighting Type: LED
• Number of Fan Speeds: 3
• Pro-Style: Yes
• Filter Type: Baffle
• Light: Yes

Technical Details

• Energy Star: No
• Amps: 10
• Electrical: 3-prong, Non-GFCI outlet - 120V

Dimensions

• Width: 65 7/8" (+/- 1/16")
• Depth: 24"
• Height: 18"

Warranty

• Parts and Labor: 2 Years

Description

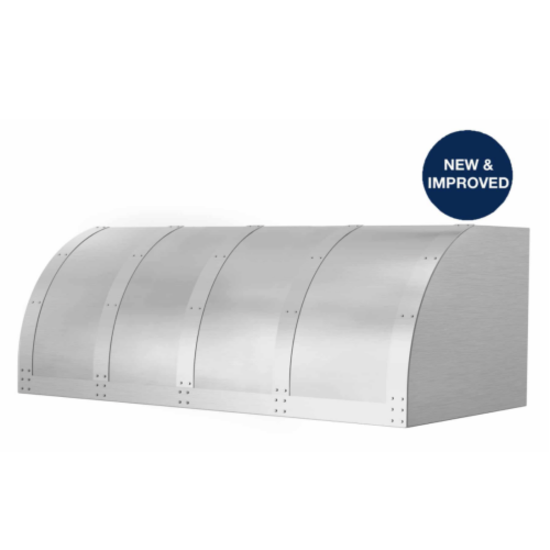

66 Inch Wall Mount Range Hood: Designed for larger kitchens, providing ample coverage and powerful ventilation.

3-Speed + Boost: Features a 3-speed fan with a Boost option to efficiently handle various cooking tasks, especially high smoke cooking.

Multiple Blower Options: Offers flexibility with internal, inline, and remote blower options to suit your kitchen setup.

Push-Button Controls: Easy-to-use controls that allow simple operation and quick adjustments.

Dimmable LED Lighting: Adjustable LED lighting to enhance visibility on your cooking surface and create a modern, energy-efficient lighting solution.

Stainless Steel Baffle Filters: Durable, dishwasher-safe baffle filters that trap grease and improve airflow efficiency.

Multi-Stage Grease Capture System: A comprehensive system designed to capture grease and improve airflow for cleaner kitchen air.

Brushed Stainless Steel Finish: A sleek, durable finish that complements modern kitchen designs while ensuring longevity and ease of cleaning.

Features

• Three-Speed Fan: Features three unique blower speeds controlled by a discreet push-button control panel system.
• Boost Feature: A fourth Boost speed can be activated for high smoke cooking, running for 7 minutes to efficiently clear the air before automatically returning to the third speed.
• Multi-Stage Grease Capture System: Starts with durable, dishwasher-safe stainless steel baffle filters that capture over 90% of cooking grease. The second stage features an inner shield that distributes airflow evenly across the surface while capturing additional grease.
• Easy Removable Grease Tray: Collects any final residual grease for easy cleaning.
• Stunning LED Lighting: Energy-efficient LED lights highlight your cooking surface for improved visibility. The lighting intensity is adjustable, and it features a memory function to return to the last set position when turned back on.
• Quiet Performance with Multiple Blower Options: Provides optimal exhaust with whisper-quiet operation, allowing for conversation while entertaining. Choose from internal, in-line, or remote blowers for customizable performance.
• Customization:
  • Color Options: Choose from over 1,000 colors in gloss, matte, and textured finishes. Submit a sample to create a custom color for a unique look.
  • Blower Options: Internal blowers available in 600 and 1200 CFM, in-line blowers in 800 and 1200 CFM, and remote blowers in 1000 and 1400 CFM.
  • Metals & Strapping: Select from 14 custom metal finishes, including brass and copper, with the option for custom strapping and rivets to complement your kitchen design.
• Additional Features:
  • Professional-grade smoke removal.
  • Easy-to-use push-button controls.
  • Quiet operation.
  • Includes brushed stainless steel strapping and rivets.
  • Accommodates top or rear discharge.
  • Install with or without optional duct cover.
  • Compatible with in-line, in-hood, and remote blowers.
