Specifications

• Certifications
  • CEE Tier Rating: Not Rated
  • Energy Rating: 267
  • Energy Rating (Kwh/Year): 267
  • UL: Yes
  • Prop65: Standard
  • Energy Star Qualified: No
  • ADA Compliant: No
• Controls
  • Automatic Temperature Controls: Yes
  • Feedback-Status Indicators: Cycle Complete; Fill; Final Spin; Lid Lock; Rinse; Sensing; Wash
  • Electronic Display Type: No
  • Control Type: Knobs
  • Control Location: Rear Panel
• Cycles
  • Number Of Wash Cycles: 12
  • Washer Cycle Selections: Bulky/Sheets; Clean Washer with affresh; Colors; Colors with Soak; Delicates; Drain & Spin; Heavy Duty; Normal; Quick Wash; Rinse & Spin; Whites; Whites with Soak
• Details
  • Maximum Spin Speed: 680
  • Internal Heater: Yes
  • Water Factor: 6.01
  • Water Faucet: No
  • Pedestal Options: No
  • Sound Package: No
• Dimensions
  • Height With Lid Open: 52
  • Carton Width: 29 inches
  • Gross Weight: 126 pounds
  • Net Weight: 115 pounds
  • Capacity (DOE) US: 3.8
  • Capacity IEC Canada: 4.4
  • Carton Height: 46 inches
  • Carton Depth: 27.25 inches
• Electrical
  • Power Cord Included: Yes
• Exterior Details
  • Adjustable Feet: Yes
  • Slow Close Lid: No
  • Window: No
  • Lid/Door Lock: Yes
  • Lid/Door Finish: Powder Coat
• Interior Details
  • Out Of Balance Sensing: Yes
  • Suspension System: 4 Springs 4 Dampers
  • Wash Action: Agitator
  • Advanced Vibration Control: Yes
  • Automatic Load Size Sensing Technology: Yes
  • Dispense System: Bleach & Fabric Softener
  • Motor Drive Type: Belt
  • Washer Drum Material: Stainless Steel
• Modifiers
  • Delay Start: No
  • Temperature Selections: Cold; Cool; Hot; Tap Cold; Warm
  • Number Of Wash/Rinse Temperatures: 5
  • Pre Soak: No
  • Number Of Spin Speeds: 2
  • Number Of Water Levels: 2
  • Rinse Temperature: Cold
  • Water Levels: Auto Sensing; Deep water
• Performance Details
  • Motor Horsepower: 1/4 HP
• Smart Compatibility
  • Smart Appliance: No

Description

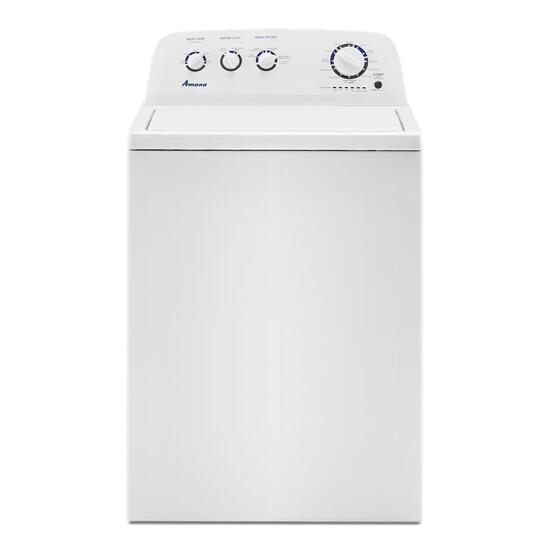

Size and Capacity: 28-inch top-load washer with a 3.8 cu. ft. capacity

Wash Cycles: 12 different wash cycles to accommodate various laundry needs

High-Efficiency Agitator: Ensures thorough cleaning while using less water and energy

Deep Water Wash Option: Adds extra water to enhance cleaning performance for larger or heavily soiled loads

Automatic Fabric Softener Dispenser: Distributes fabric softener evenly throughout the wash

Late Lock Lid: Allows you to add items to the wash even after the cycle has started

Extra Rinse Option: Provides an additional rinse to remove any leftover detergent

Cold Wash Cycle: Protects colors and fabrics by washing with cooler water temperatures

Features

• High-Efficiency Agitator and Wash System: The High-Efficiency Agitator and Wash System hit dirt hard, but are gentle on clothes for efficient cleaning action.
• Automatic Fabric Softener Dispenser: The easy-to-fill Automatic Fabric Softener Dispenser releases fabric softener from the HE agitator at just the right time, so you don’t have to worry about missing the rinse cycle.
• Stainless Steel Wash Basket: The durable Stainless Steel Wash Basket has a smooth, modern finish, helping prevent snags that can ruin clothes.
• Quick Wash Cycle: Is your favorite outfit in the hamper? Use the Quick Wash Cycle to wash light loads fast.
• Large Capacity: Pile it in and get the most out of the 3.8 cu. ft. Large Capacity to take on every load.
• Deep Water Wash Option: The Deep Water Wash Option adds the maximum amount of water for your laundry load, so you can clean with confidence.
• Late Lid Lock: No sock left behind. The Late Lid Lock gives you extra time to throw in any missed items before the Spin Cycle starts.
• Extra Rinse Option: The Extra Rinse Option adds more rinse action to most wash cycles to help remove extra soil or detergent.
• Advanced Suspension System: The Advanced Suspension System senses each load and stabilizes the wash basket to cut down on racket caused by noisy, unbalanced loads.
• Cold Wash Cycle: Keep it cool. The Cold Wash Cycle uses cold water to help care for fabrics and prevent color loss.
• Cold Wash Cycle: This eco-efficient cold water cycle cleans as well as a warm water wash. An initial wash phase at the beginning of the cycle uses a high detergent concentration to remove tough stains including grass, blueberry juice, red wine. This cycle uses less energy because there is no need to heat the water or maintain the temperature during the cycle.
• Delicates Cycle: The Delicates Cycle uses a slower spin speed and a gentle wash motion to clean delicate items.
• Bulky Cycle: The Bulky Cycle adds extra wash motion so larger items, like bedspreads, get plenty of movement throughout the cycle.
• 12 Wash Cycles: Choose from 12 Wash Cycles to help make laundry day a breeze.
• 5 Temperature Settings: 5 Temperature Settings help make sure the wash water is just the right temperature for every load.
• An American Company for Over 100 Years: Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
