Specifications

• Certifications
  • Prop65: Standard
  • ADA Compliant: Yes
  • UL: Yes
• Cooktop Details
  • Cooktop Control Type: Knobs
  • Cooktop Control Location: Front
  • Heating Element On Indicator Light: Yes
  • Hot Surface Indicator Light: No
  • Cooktop Control Knob Color: White
  • Cooktop Surface Color: White
• Details
  • Oven Configuration: Single Oven
  • Power On Indicator Light: No
  • Automatic Convection Conversion Temperature Adjust: No
  • Power Outage Compatible: No
  • Range Configuration: Freestanding
  • Fuel Type: Gas
  • LP Convertible: Yes
  • Range Drawer Type: Broiler Drawer
  • Range Type: Freestanding
• Dimensions
  • Depth Closed Excluding Handles: 24.5
  • Depth With Door Open 90 Degree: 42.125
  • Carton Height: 44.88 inches
  • Carton Depth: 28.35 inches
  • Carton Width: 21.46 inches
  • Gross Weight: 113.76 pounds
  • Net Weight: 0 pounds
  • Cutout Height: 42
  • Cutout Width: 20.125
  • Oven Interior Height: 16
  • Oven Interior Width: 18.5
  • Oven Interior Depth: 15.6
• Electrical
  • Power Cord Included: Yes
• Element/Burner Details
  • Left Rear Element-Burner Power: 7,000 BTU
  • Number Of Cooking Element-Burners: 4
  • Right Front Element-Burner Power: 7,000 BTU
  • Right Rear Element-Burner Power: 9,500 BTU
  • Right Rear Element-Burner Type: Sealed Burner
  • Cooktop Element Style: Sealed Burner
  • Left Front Element-Burner Type: Sealed Burner
  • Right Front Element-Burner Type: Sealed Burner
  • Left Front Element-Burner Power: 9,500 BTU
  • Left Rear Element-Burner Type: Sealed Burner
• Exterior Details
  • Oven Control Location: Front
  • Oven Control Type: Knobs
  • Oven Window Size: Small
  • Handle Color: White
  • Door Type: Metal & Glass
  • Knob Color: White
• Grate Details
  • Grate Details: Cast Iron Grates; Gloss Finish
  • Number Of Grates: 2
• Oven Details
  • Interior Color: Grey
  • Bake Element Power: 12,700 BTU
  • Broiler Element Power: 12,700 BTU
  • Broiler Location: Drawer
  • Convection Functions: No
  • Number Of Oven Lights: 1
  • Hidden Bake Element: Yes
  • Oven Cleaning Type: Manual Clean
  • Oven Cooking System: Thermal
  • Oven Light Type: Incandescent
  • Oven Rack Type: Standard
  • Number Of Oven Racks: 2
  • Number Of Rack Guides: 5
  • Convection Element Type: None

Description

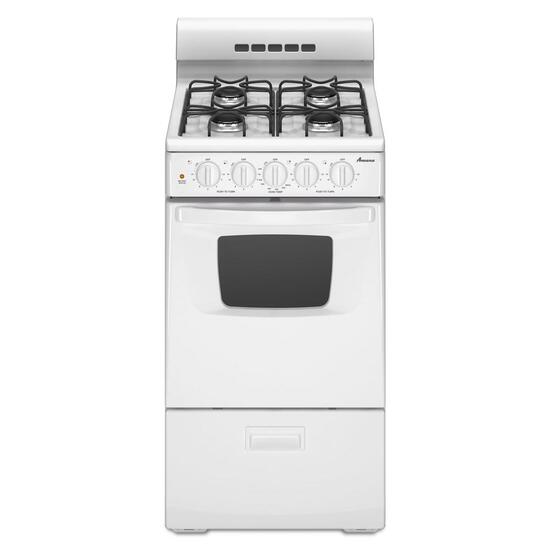

20-Inch Freestanding Gas Range with four sealed burners for efficient cooking and easy cleaning

2.6 cu. ft. Oven Capacity provides ample space for baking and roasting

Broiler function for efficient cooking and browning

Oven Light enhances visibility inside the oven

Large Oven Window allows easy monitoring of food without opening the oven door

Electronic Ignition ensures reliable and quick lighting of burners

ADA Compliant designed for accessibility and ease of use for individuals with disabilities

Features

• Compact Oven Capacity: The compact 2.6 cu. ft. oven is ideal for tight spaces so you can fit both a roommate and your range in a studio apartment.
• Versatile Cooktop: Our Versatile Cooktop features multiple burner options that provide up to 9,500 BTUs, helping you cook your favorites all at once.
• Temp Assure™ Cooking System: Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
• SpillSaver™ Upswept Cooktop: Go ahead, spill the beans. The SpillSaver™ Upswept Cooktop comes with raised edges to keep spills contained and surfaces clean.
• Sealed Burners: Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
• LP Gas Convertible: Convert your natural gas range for use with propane gas with the included LP Gas Conversion Kit.
